The Compact Color TFT Dash For Road Use

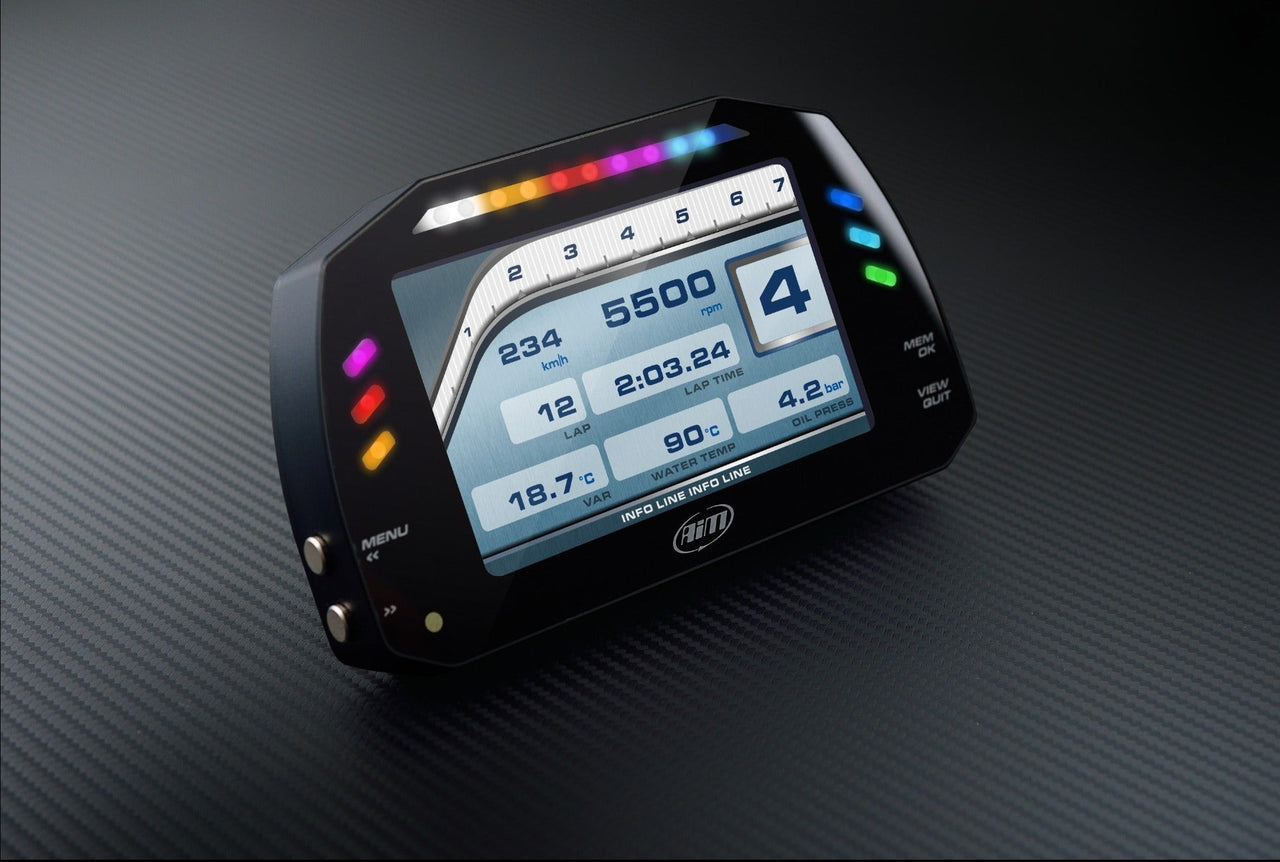

MXS 1.3 Strada is a beautifully-designed, feature-rich color digital dash display. It is basically the MXS 1.3 without the datalogging function. The MXS 1.3 Strada features a compact 5" High Contrast TFT color screen with great visual impact, configurable to show lap times, RPM, and a huge range of info coming from your Engine Control Unit, analog/digital inputs, pre-defined math channels and an optional GPS08 Module. Programmable multicolor shift and alarm LEDs round out an incredibly powerful package. There's even a version with "Street Icon" LEDs instead of the traditional "plain" LEDs!

The MXS 1.3 Strada displays your RPM, selected gear, speed, plus all the data you choose (water temp, oil pressure, trans temp, lap times and much more) in either pre-configured or user-customized pages. Swapping between pages is as easy as pushing buttons. Plus the MXS 1.3 Strada puts a huge amount of control over your car's systems at your fingertips.


Eight fully configurable analog input channels can sample, log, and display a wide range of temperatures, pressures, and potentiometers (throttle position, steering wheel position, etc). Choose between OBDII and CAN/RS232 versions to suit your needs and level of customization. Both receive rich data from your ECU.

An OBDII input connection is an easy, plug-and-play option. A hardwired CAN input allows you to further expand the dash by adding an almost limitless number of AiM CAN Data Hubs (Part No. MC-329, sold separately). These hubs let you connect other inputs such as Lambda Controller (O2), SmartyCam, or even channel expansion hubs, without using any analog channels. A separate CAN output allows you to send messages to your car's existing CAN network, adding to the vehicle system control possibilities!


The ten multicolored RGB shift lights can be customized to define the max RPM for each single gear. The same flexibility applies to the configurable RGB alarm LEDs: you can configure them to turn on/off depending on analog or digital inputs, ECU values, expansion values, math channels or GPS information (with the optional GPS08). You choose conditions, colors, and select a solid alarm or flashing one (including flash frequency). It's also possible to configure an accompanying text message.


The MXS 1.3 Strada features a low-side (switch to ground) digital output that can be configured to activate/deactivate external systems (switch on/off additional lights, cooling fan relays, fluid circulation pumps, etc.) based on those inputs.

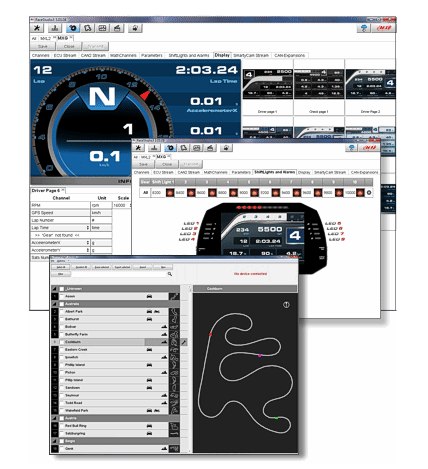

MXS 1.3 Strada is configured using your PC and Race Studio 3. You can create, customize, delete, import and export configurations with all channels, ECU drivers, Math Channels, Display Pages, Digital Output, Alarms, Shift Lights and all the expansions you need.


  • Compact 6.7" x 3.8" x 0.9" anodized aluminum housing

  • 5" TFT high-contrast color display

  • Choose Standard or Street Icon LEDs

  • Screen resolution 800x480 pixels

  • Weight 1 lb. (480g)

  • Waterproof IP65


  • MXS 1.3 Strada digital dash

  • USB cable

  • 14-pin standard wiring

  • 23-pin Connector + contacts

  • Installation CD with Race Studio 3 software

All sensors and modules sold separately.
