AiM Patch Cables With 3.5mm Microphone Input

The original AiM SmartyCam (2009-2013) and new SmartyCam HD V 2 / SmartyCam HD GP all have an internal microphone for great racing sound, but it does limit your sound options. This special cable has a 3.5mm mono jack for an external microphone. The input from this jack automatically mixes with the sound from the SmartyCam internal microphone.

SmartyCam Microphone Cable Fitment

• Original SmartyCam (2009-13, with the viewing screen on top) Exp port to AiM dash/logger or SMC Bridge
• SmartyCam HD "Rev 2" or later (2015+) Exp port to AiM dash/logger or SMC Bridge
• SmartyCam HD GP "Rev 2.1" or earlier (to 2018) Exp port to AiM dash/logger or SMC Bridge

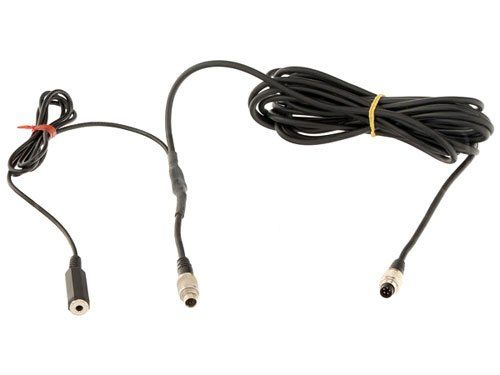

AiM SmartyCam CAN Cable with Microphone Jack, 4M Details:

• Manufacturer: AiM
• Manufacturer part number: V02566300
• Alternate part number: MC-552
• Dash, Solo DL, Solo 2 DL End: 5 Pin Male 712
• SmartyCam End: 7 Pin Male 712
• Microphone jack: 3.5mm female mono
• Cable length: 4M (13 feet)
• Length from 7 pin 712 to "Y" Adapter: 50mm
• Length from Y adapter to 5 pin 712" 4 Meter
• Length from Y adapter to microphone 3.5mm female jack: 900mm

The 7-pin 712-type connector plugs into the CAN port on the original AiM SmartyCam. A 5-pin connector on the other end connects your SmartyCam to your AiM data logger, SMC Bridge, etc. Measures 4M (13 feet) long. 3.5mm mono microphone jack is attached to the lead.
This cable is not compatible with the SmartyCam HD, which has a 5-pin plug.
