Data Loggers & Video

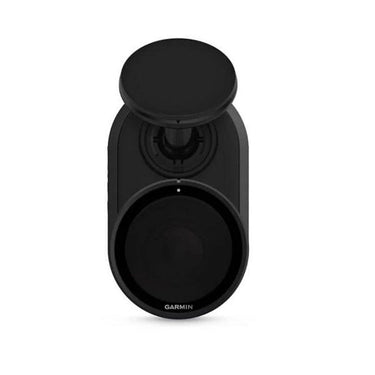

Garmin Remote Camera This is a replacement 1080P camera for the Garmin Catalyst Driver Performance Optimizer. Includes power/data cable, polarized lens cover, adhesive mount and adhesive cable clips. IN THE BOX: Remote cam Polarized lens cover Adhesive mount One 3.5-meter cable Five cable clips

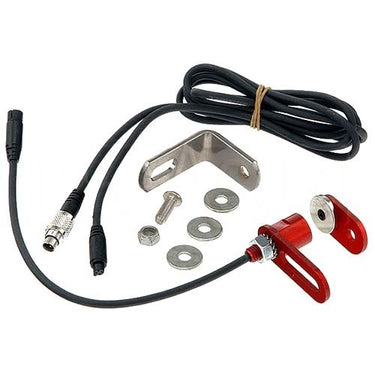

AiM Magnetic Pedal Position Sensor For MyChron5 The accelerator/brake pedal position sensors is a crucial support device for kart drivers. They provide a precise indication of timing and intensity of braking and/or acceleration. This permits the team to understand whether the driver has accelerated or braked at the right moment, with the correct pedal strength, across multiple laps and overlaid with other critical data. This is a very important factor in evaluating driver behavior and improving his/her performance. Data can be acquired by your MyChron5 connected to a MyChron Expansion and analyzed on your PC. Made in anodized aluminium, these sensors are very robust and water-resistant. Calibration is immediate: once installed, connect the sensors to your MyChron Expansion and get pedal positions (in high position and zero position). After that the sensor will start getting acceleration or braking data. Call us with any questions you have about the incredible new MyChron5 2T from AiM!

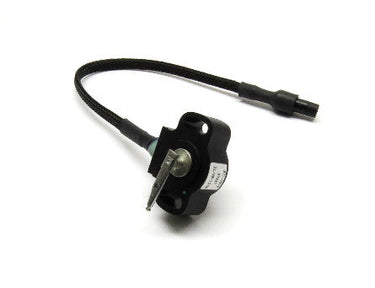

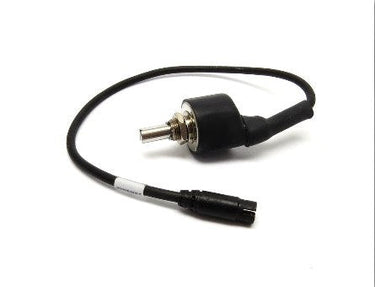

AiM Kart Racing Steering Angle Sensor Measure and log your kart driver's steering input with the AiM Steering Angle Sensor. Includes a rotary potentiometer with a male 4-pin 719-style connector, two toothed pulleys, one toothed belt, and one sensor mounting bracket. The steering shaft pulley is designed to fit a 7/8"-diameter shaft. (Smaller shafts will need to add a bushing to fit the pulley.) This sensor is designed to measure up to five complete turns of the steering column. This sensor requires the addition of an Expansion Box or eBox when used with MyChron3 Extreme, MyChron4, and MyChron5 kart dash loggers. If your steering column is larger than 7/8", consider using the AiM String Pot Steering Angle Sensor (Part No. AIM-MC-280) instead. The String Pot can work with any diameter steering shaft.

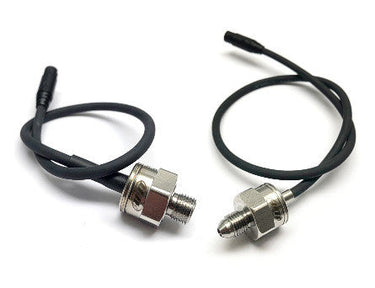

AiM Sports Pressure Sensor NOTE: Sensors typically take 3 to 5 business days to ship. Add the appropriate AiM Sports Pressure Sensor to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level! All sensors have a 40 cm (16 inch) cable length

AiM Sports KA 50 psi Boost/Vacuum (Absolute Pressure) Sensor This "absolute pressure" sensor is ideal for measuring vapor (gas) pressures, from intake boost to crankcase pressure. The 50 psi pressure range is based on perfect vacuum (i.e., from 15 psi below atmospheric pressure to 35 psi above). This sensor is marked "0-50psiA" to differentiate it from the standard 0-50 psi sensor (marked "0-50psiSG"), which does not measure vacuum. KA pressure sensors are more robust than VDO-style pressure sensors, but they should still be isolated from engine heat and vibration whenever possible. It is compatible with these AiM products: MyChron5 MXL MXL 2 MXG MXS MXM EVO3 EVO4 Features 1/8" NPT male threads.

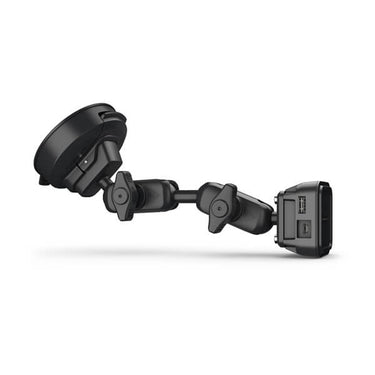

Garmin Catalyst Suction Mount For use with the Garmin Catalyst Driver Performance Optimizer.

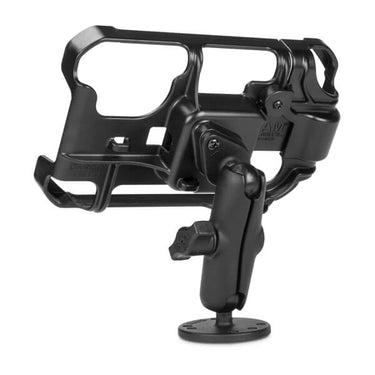

Garmin Catalyst Cage Mount (RAM Mount) For use with the Garmin Catalyst Driver Performance Optimizer. NOTE: This is not a roll cage mount.

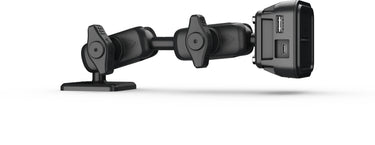

Garmin Catalyst Screw Down Mounting Kit To mount the award winning Garmin Catalyst to a race car, we prefer the Garmin Catalyst Screw Down Mounting Kit. It includes a flat mount plate with two articulating balls and the special magnetic tablet mount. Garmin Catalyst Screw Down Mounting Kit Details: Manufacturer: Garmin Manufacturer Part Number: 010-13081-01 We have many racers that also take their Garmin Catalyst from their track car to their DE car and the Garmin 010-13081-01 Screw Down Mounting Kit is a track worthy way of securing your Catalyst to your race car.

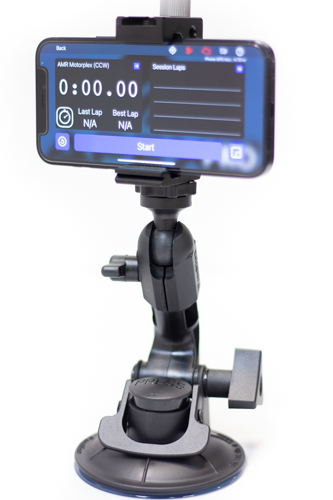

APEX Pro Motorsports Phone Mount The APEX Pro Motorsports Phone Mount was designed in-house by APEX Pro for the demands and rigors of driving on track. The strong suction base is rated for five pounds, so holding your phone securely is no problem. The sleek anodized aluminum phone holder is adjustable and can hold the largest smart phones currently available. This mount is designed to shake less while recording video compared to other phone mounts. (Depending on the shape of your phone and the camera location – not centralized like an action cam – there's likely to still be some shakiness in your video.) In our testing, we found the iPhone 12 and iPhone 6S to have the best stabilization for in-car video. This phone mount is perfect when paired with the Lap Timer Plus in-app purchase available on the home screen of the APEX Pro app. FEATURES Securely mounts any phone from 2.6" to 3.6" (66 to 91mm) wide, including case. Designed for use with Lap Timer Plus. Tough anodized aluminum mount. Fits any size phone. (Not compatible with iPod Touch.) Great for timing, scoring, and video-recording apps on the road and at the track. Tilt and lock the hinge with 360o rotation ability. Sturdy design for smooth or rough surfaces. Perfect way to display the APEX Pro app.

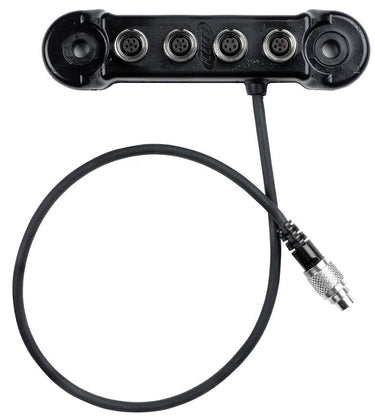

Aim Sports Data Hub Extend the capabilities of your AiM MXL, MXL2, MXG, MXS or EVO 4 data logger without occupying any more channels or running more cables to your dash. Connect up to four CAN peripherals to each Data Hub. You can even "stack" Data Hubs, connecting up to four more hubs to each hub, multiplying the number of available connections! Accepts any AiM CAN accessory, including GPS, LCU-One Lambda Controller, Memory Key, or TC (Thermocouple) Hubs. Any channel can be selected for display on the dash. This data hub can also be used to link your SmartyCam HD or SmartyCam GP HD to any AiM dash.

Stilo to Garmin Adapter Cable This cable can be used to connect your Garmin Catalyst Driver Performance Optimizer to your Stilo helmet. Includes 3.5mm connector on one end and Stilo male IMSA connector on the other. Made in the USA from thin ROHS-compliant cable.

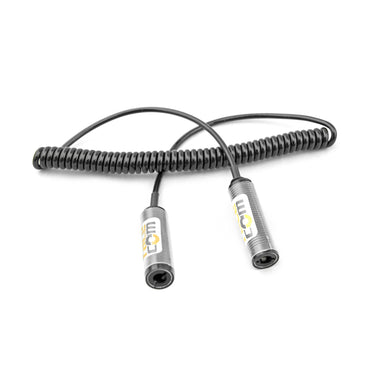

Stilo to IMSA Adapter Cable (Female/Female) This cable enables connection between an IMSA helmet kit and a Stilo intercom. All of our cables are built at our Mooresville location with U.S. manufactured mil-spec hardware. RaceCom cables are very strong and have been pull tested by a certified lab - our meticulous build process has been proven to outlast and outperform all others in the business.

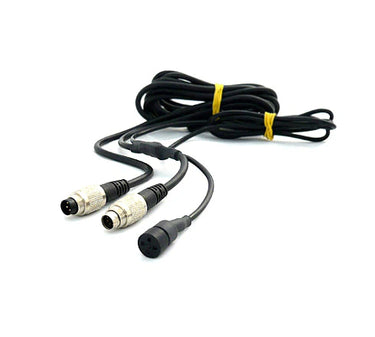

AiM Patch Cables With 3.5mm Microphone Input The original AiM SmartyCam (2009-2013) and new SmartyCam HD V 2 / SmartyCam HD GP all have an internal microphone for great racing sound, but it does limit your sound options. This special cable has a 3.5mm mono jack for an external microphone. The input from this jack automatically mixes with the sound from the SmartyCam internal microphone. SmartyCam Microphone Cable Fitment Original SmartyCam (2009-13, with the viewing screen on top) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD "Rev 2" or later (2015+) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD GP "Rev 2.1" or earlier (to 2018) Exp port to AiM dash/logger or SMC Bridge AiM SmartyCam CAN Cable with Microphone Jack, 4M Details: Manufacturer: AiM Manufacturer part number: V02566300 Alternate part number: MC-552 Dash, Solo DL, Solo 2 DL End: 5 Pin Male 712 SmartyCam End: 7 Pin Male 712 Microphone jack: 3.5mm female mono Cable length: 4M (13 feet) Length from 7 pin 712 to "Y" Adapter: 50mm Length from Y adapter to 5 pin 712" 4 Meter Length from Y adapter to microphone 3.5mm female jack: 900mm The 7-pin 712-type connector plugs into the CAN port on the original AiM SmartyCam. A 5-pin connector on the other end connects your SmartyCam to your AiM data logger, SMC Bridge, etc. Measures 4M (13 feet) long. 3.5mm mono microphone jack is attached to the lead. This cable is not compatible with the SmartyCam HD, which has a 5-pin plug.

AiM Patch Cable With Microphone CAN cable with external mic to connect a supported AiM data logger or dash logger to SmartyCam HD Rev 2.1 / SmartyCam GP HD Rev 2.1. *Not compatible with SmartyCam GP HD Rev 2.2 4 meters in length. 7-pin 712/male to 5-pin 712/male

AiM Sports SmartyCam GP Base Mount Kit The Best Mount for Your SmartyCam Bullet Camera This strong, adjustable mount holds your AiM Sports SmartyCam GP HD base unit securely to your roll bar or harness bar. Two pivoting ball joints give you lots of adjustment while keeping it safe and secure during races and track days while the V-shaped base and two different size hose clamps fit a wide range of tubing sizes, from 1" to 2" OD. The rectangular base adapter provides a stable, bolt-on base for secure mounting of the SmartyCam GP base. The wide range of adjustment lets you aim the viewing screen in just about any direction. Includes V-base with ball, double clamp arm, top ball with 2-bolt diamond mounting flange, rectangular mount base adapter, 2 hose clamps, and rubber isolator strap.

AiM SmartyCam GP Suction Mount This adjustable mount holds your AiM SmartyCam GP bullet camera securely to your windshield, allowing you to quickly mount your camera and keep it pointed in the right direction during races, track days, and other driving events. Two pivoting ball joints allow a wide range of adjustment, and the 3 1/2" diameter lever-actuated suction cup base works on any smooth, clean, flat surface. The machined aluminum collar accepts a lipstick-type camera measuring 24mm (0.94") OD. You can also eliminate the collar to mount a lightweight, compact camera with a standard 1/4-20 tripod mount (including SmartyCam and SmartyCam HD). Included in the AiM SmartyCam Suction Mount: Suction cup base Lower ball clamp 60mm (2.4 inch) clamp arm Top ball with 1/4-20 mounting stud Machined collar
