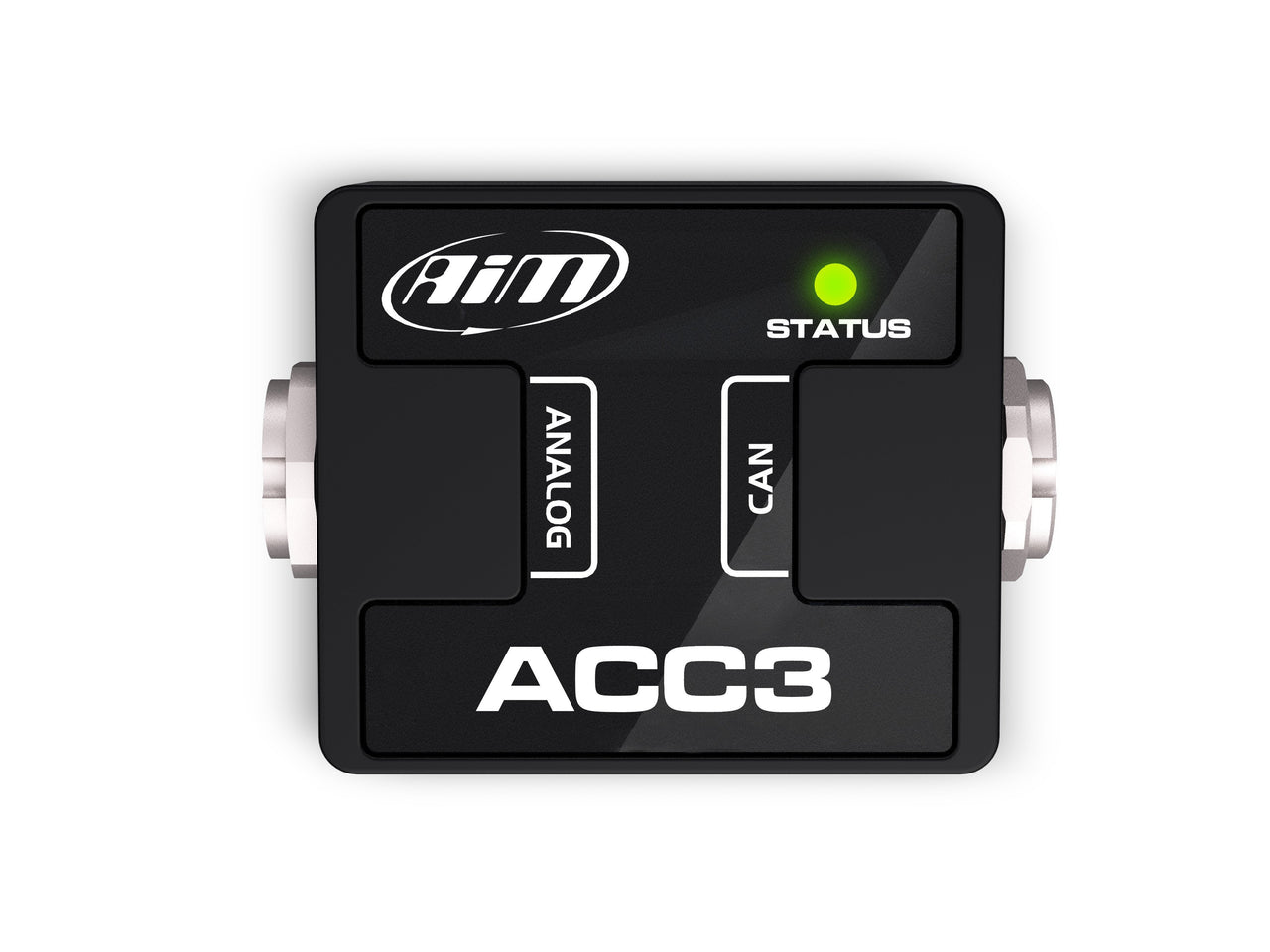

Thumbnail for AiM ACC3 Analog CAN Converter

AiM ACC3 Analog CAN Converter

Analog Cable Ends

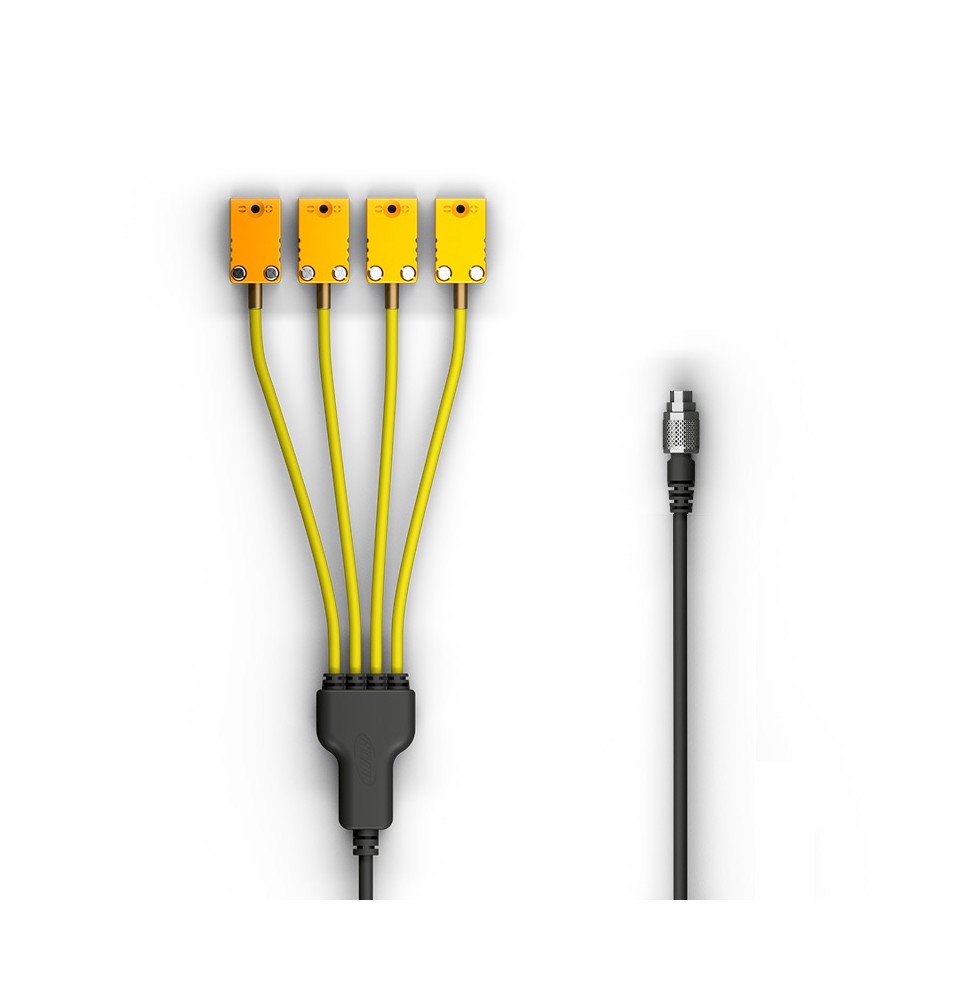

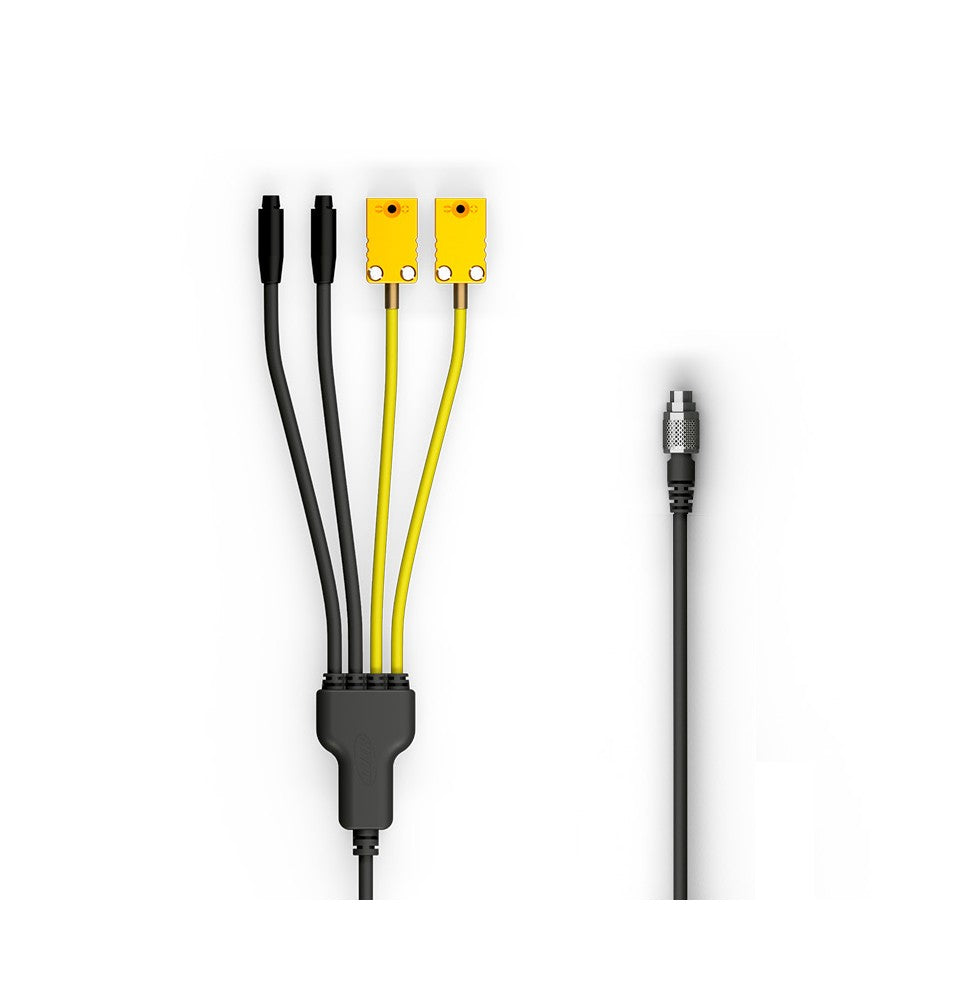

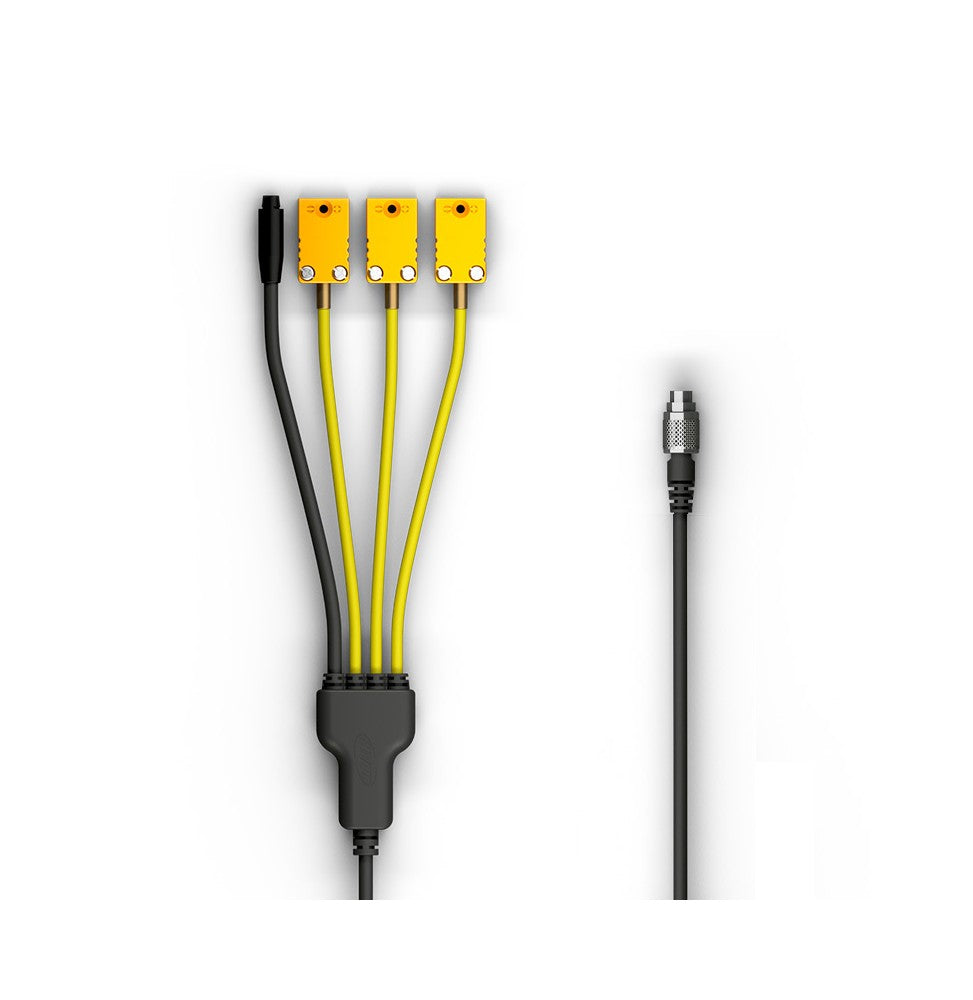

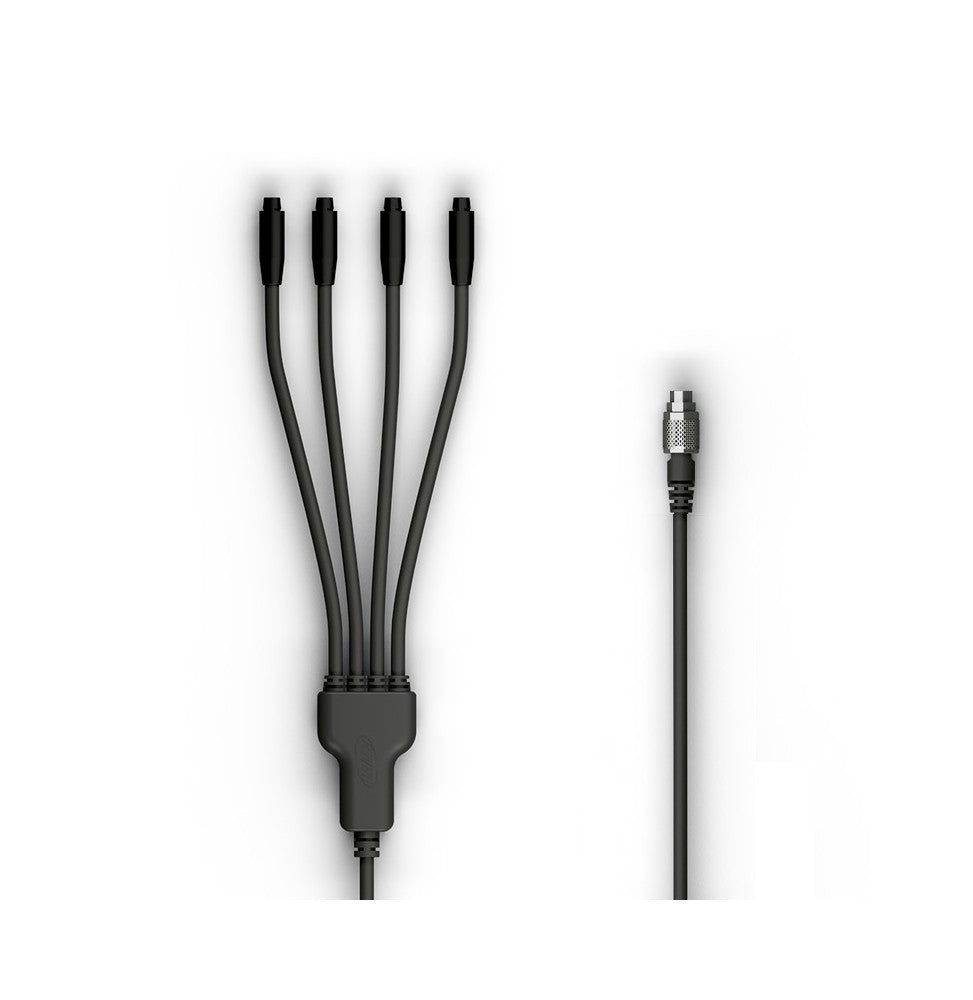

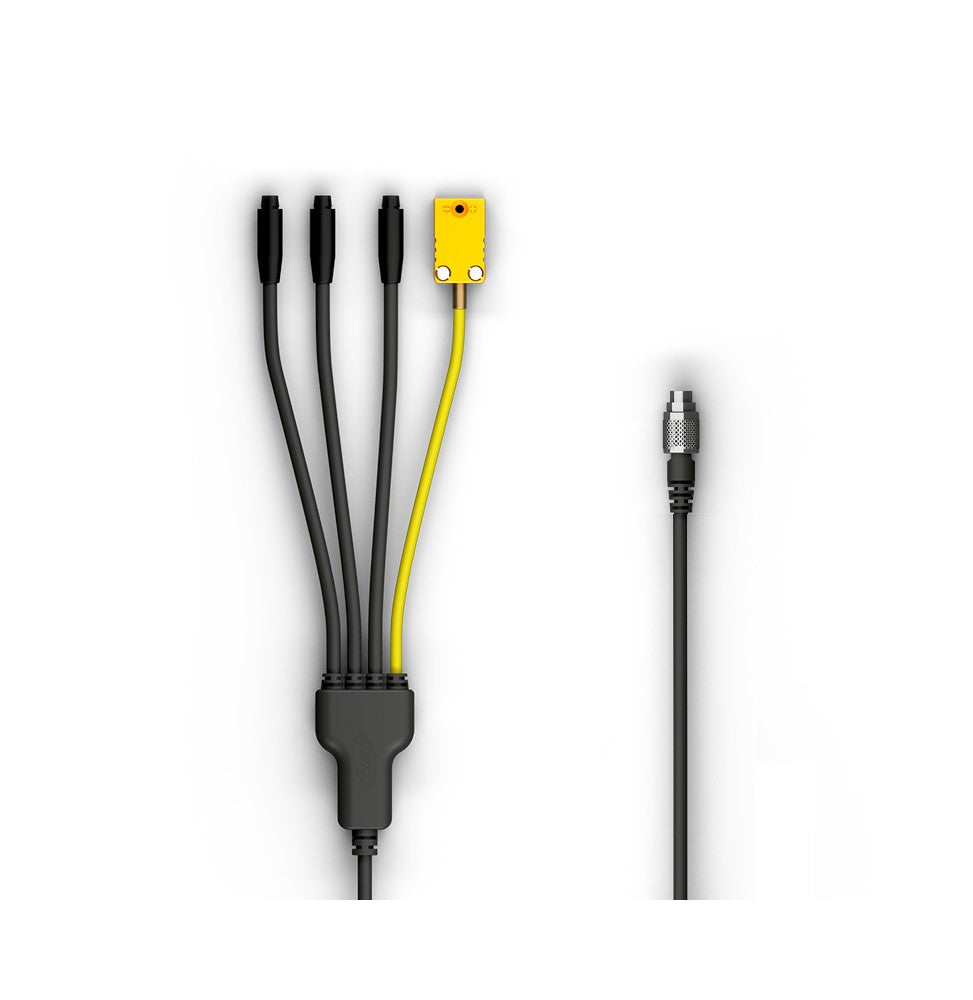

Split 4 719 Analog 50 cm Split 3 719 Analog 1 TC 50 cm Split 2 719 Analog 2 TC 50 cm Split 1 719 Analog 3 TC 50 cm Split 4 TC 50 cm

CAN Cable Length

50 CM 100 CM 200 CM 400 CM

$357.50

PRODUCT DESCRIPTION

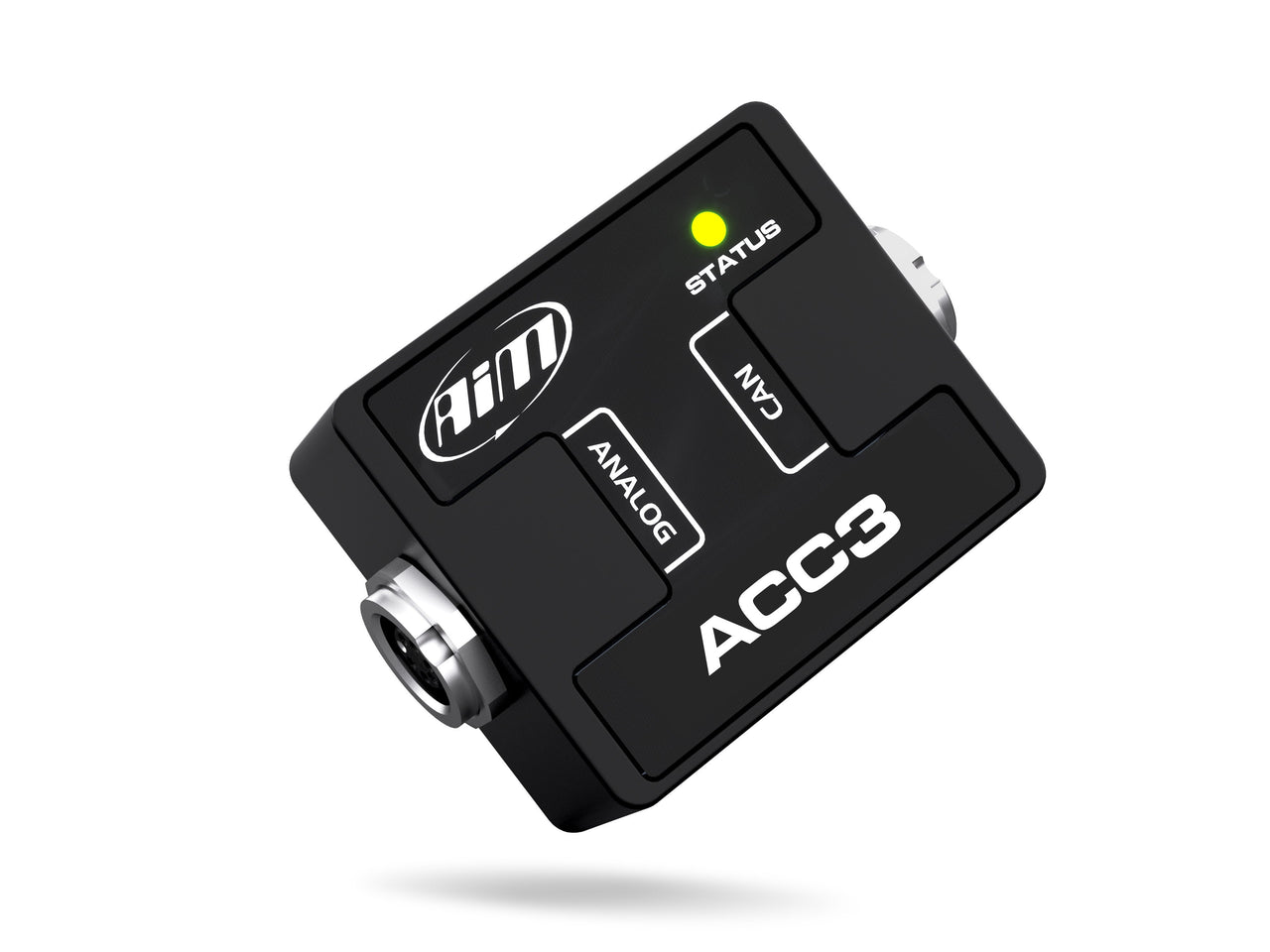

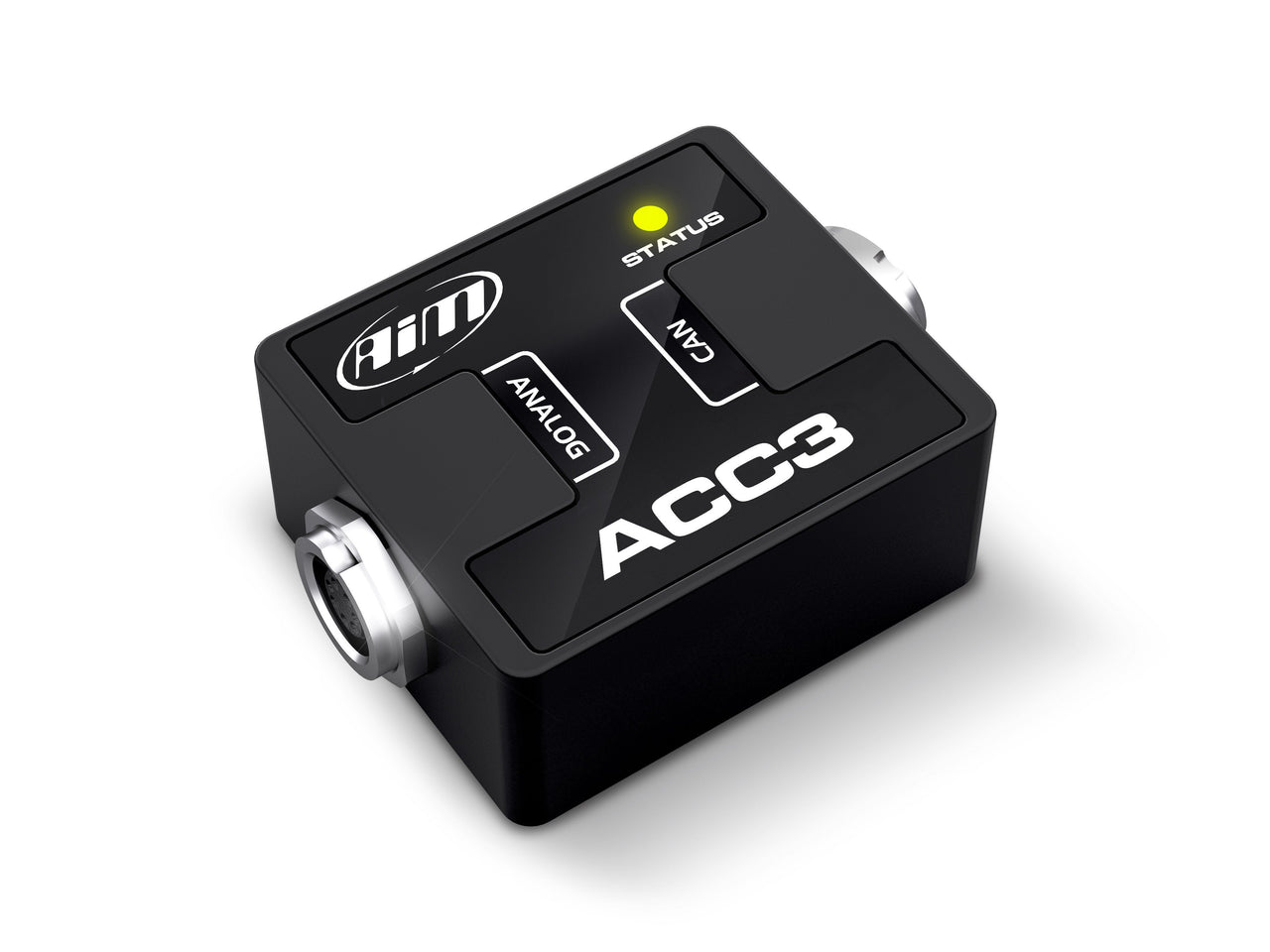

AiM ACC3 Analog CAN Converter

This compact CAN device provides virtually endless options to expand your vehicle data acquisition system. The AiM ACC3 adds up to four freely-configurable analog (or two digital and two analog) channels without occupying or modifying any of the existing system channels.

* Not compatible with MXL2, MXS and MXG.

Features:

Analog channels		4 fully configurable channels, 200 Hz each: TC, TR, 0÷5 V, 0÷12 V
Speed inputs		2 (AN3-AN4), max frequency 10 kHz, internal pull-up for open drain/collector input
External power		9÷15 V
Connection		1 Analog 8 pins Binder 712 + AiM CAN 5 pins Binder 712
Material		PA6 30% glass
Dimensions		44.0 x 38.0 x 19.8 mm
Weight		50 g
Waterproof		IP65

SENSORS CONNECTIONS

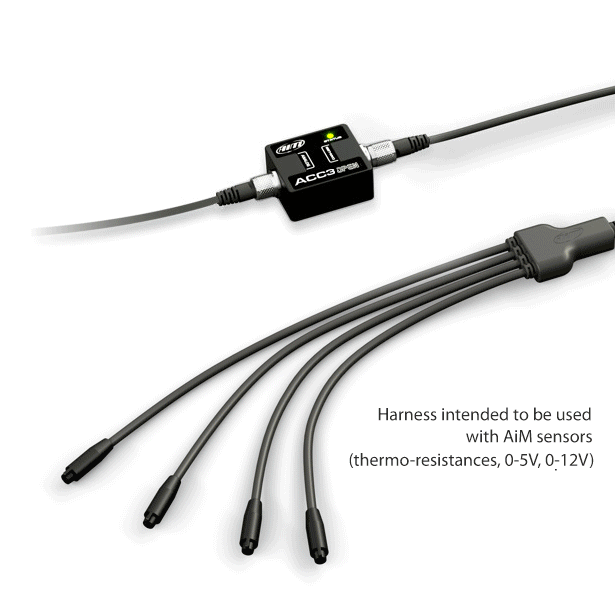

They can manage many different sensors, from thermocouples to sensors whose output is 0÷12V.
Please, note that the thermocouples require dedicated compensated cables, so different kits and different harnesses and cables are available.
